Gigabit Ethernet Switch 5 Port With One SFP Slot And Wide Voltage Dual Power Input
Introduction of Gigabit Ethernet Switch
IM-FS140GE series is the 10/100/1000 Mbps industrial fiber switch, operating temperature-40 ℃ to + 75 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification, and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Specification of Gigabit Ethernet Switch
| Product Name | Gigabit Ethernet Switch 5 Port |
| Model No. | IM-FS140GE |
| Port | 1 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features | Transmission mode: storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media | 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Industry Standards | EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic: EN 50121-4 |
Key Features of Gigabit Ethernet Switch
- 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 1 x 1000Mbps SFP fiber port
- 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- A store-and-forward switching mechanism
- Operating temperature:-40 ° ~75 ° c
- Storage temperature:-40°～ 85°C
- Working humidity:10%～90%,non-condensing
- Storage humidity:10%～95%,non-condensing
- Safety: CE Mark, commercial CE/LVD EN60950
-
Shell: Corrugated metal shell
-
Safety class: IP44
-
Dimension:158 x 114.8 x 60mm
-
Mounting method: Din-rail mounting
-
Input voltage:DC 12-52V
-
No-load power:5W
-
Reverse connection: support
Warranty & Guarantee of Gigabit Ethernet Switch
- We absolutely never use old and refurbished materials.
- 5 years Manufacturer Warranty (Excluding contrived damage or misusage). All the products have been passed the functional test and aging test before delivery.
- If there is any compatibility problem or any quality problem, the goods can be returned to us to repair or replace. The buyer should be responsible for all the charges of returning and second shipping.
Packing List of Gigabit Ethernet Switch
1pc 5 port Gigabit Ethernet Switch
1pc user manual
1pc warranty card
FAQ of Gigabit Ethernet Switch
Q: Who we are?
A: We are based in Guangdong, China, start from 2001 ,sell to Western Europe(15.00%), Eastern Europe(15.00%), Southern Europe(10.00%), South America(10.00%), Africa(10.00%), Southeast Asia(10.00%), North America(10.00%), Northern Europe(5.00%), Mid East(5.00%), Oceania(5.00%), Eastern Asia(5.00%). There are total about 101-200 people in our office.
Q: Can I get a sample?
A: We can provide samples, feel free to contact me to talk about more details.
Q: How long is the lead time?
A: Usually 3-5days.
Application of Gigabit Ethernet Switch

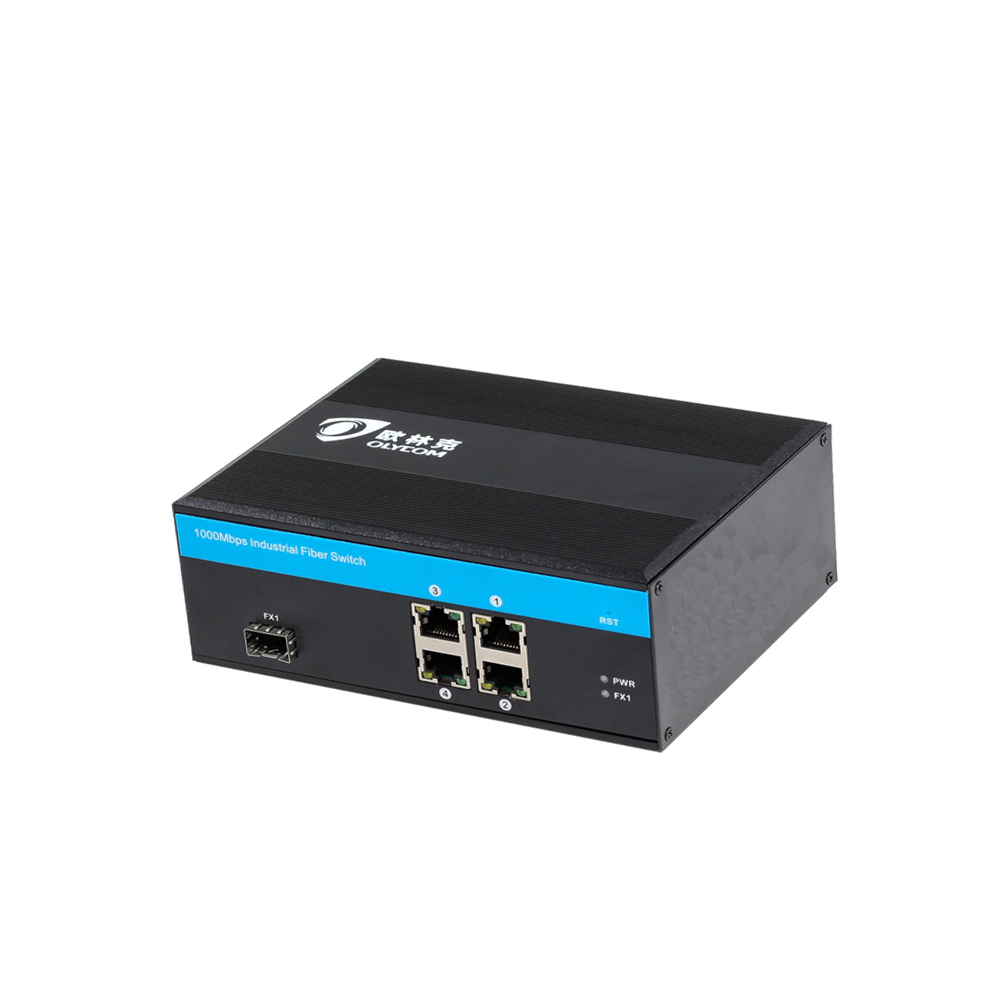

Photo of Gigabit Ethernet Switch
