10/100Mbps Industrial Network Ethernet Switch Two SFP Fiber Port And Four RJ45 Port
Introduction of Industrial Ethernet Switch
IM-FS240FE is the 10/100 Mbps industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features of Industrial Ethernet Switch
- 4 x 10/100Mbps Auto-sensing RJ45 ports
- 2 x 100Mbps SFP fiber port
- 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
- A store-and-forward switching mechanism
- Operating environment temperature:-40 ° ~85 ° c
Industry Standards of Industrial Ethernet Switch
- EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
- EMS: EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
- Traffic Control: NEMA-TS2
- Vibration: IEC 60068-2-6
- Freefall: IEC 60068-2-32
- Shock: IEC 60068-2-27
- Rail Traffic: EN 50121-4
Mechanical information of Industrial Ethernet Switch
- Shell: Corrugated metal shell
- Safety class: IP40
- Dimension: 113.8 x 93 x 34.9mm
- Mounting method: Din-rail mounting
Specification of Industrial Ethernet Switch
| Product Name | 10/100Mbps Industrial Fiber Switch (2F+4TP) |
| Model No. | IM-FS240FE |
| Port | 2 x 100Mpbs SFP ports
SM:1310nm/1550nm,20Km
1490nm/1550nm,40~120Km
MM:1310nm,2Km
4x10/100M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features | Transmission mode: storage and forward
System bandwidth:40Gbps (non-traffic jam) |
| Network media | 10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply | Input voltage:DC 9-52V
No-load power:5W
Reverse connection: support |
| Environment | Working temperature:-40°～ 85°C
Storage temperature:-40°～ 85°C
Working humidity:10%～90%,non-condensing
Storage humidity:10%～95%,non-condensing |
| Safety | CE Mark, commercial
CE/LVD EN60950 |
| Warranty | Replacement within 1year; 3 years repairing |
FAQ of Industrial Ethernet Switch
Q: How can we guarantee the quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: Why should you buy from us, not from other suppliers?
A: Shenzhen Olycom Technology Co., Ltd. is a manufacturer of fiber optic since 2003. We have passed the HIGH-TECH and ISO9001. There are many domestic and abroad agents which help us to have a good market share.
Q: What services can we provide?
A: Accepted Delivery Terms: EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Russian
Application of Industrial Ethernet Switch

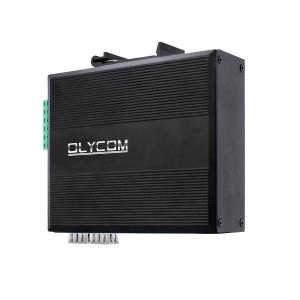

Photo of Industrial Ethernet Switch
