8 Port 1000mbps Industrial Network Switch With 4 Fiber Ports IEEE 802.3 Compliant

Product Categories
Shenzhen Olycom Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

8 Port 1000mbps Industrial Network Switch With 4 Fiber Ports IEEE 802.3 Compliant

  • 1
  • 2
  • 3

Brand Name : OLYCOM

Model Number : IM-FS480GE

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, T/T, Paypal, D/P, D/A, L/C, MoneyGram

Supply Ability : 6000 per month

Delivery Time : 3-5 days

Packaging Details : One unit device and one user manual are inside one box , sealed and well protected.

Product Name : 8 Port 10/100/1000 Mbps Industrial Fiber Switch

Ports : 12

Fiber Type : SFP Slot

Device type : Switch - 8 Ports - Unmanaged

Working temperature : -40~75℃

Warranty : 3 Years

Contact Now

Fiber Switch 8 Port 1000mbps Rugged Industrial Optical Switch With 4 Fiber Ports

Introduction of Fiber Switch

8 Port Optical Switch is the 10/100/1000 Mbps industrial fiber switch, operating temperature-40 ℃ to + 75 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification, and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features of Fiber Switch

  1. 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
  2. Auto MDI/MDIX is Supported
  3. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  4. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  5. A store-and-forward switching mechanism

Specification of Fiber Switch

Product Name Fiber Switch 8 Port 1000mbps, Industrial Optical Switch With 4 Fiber Ports
Model No. IM-FS480GE
Port

4 x 1000Mpbs SFP ports

SM:1310nm/1550nm,20Km

1490nm/1550nm,40~120Km

MM:1310nm,2Km

8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode: storage and forward

System bandwidth:40Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port, transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

Input voltage:DC 12-52V

No-load power:5W

Reverse connection: support
Environment

Working temperature:-40°～ 75°C

Storage temperature:-40°～ 85°C

Working humidity:10%～90%,non-condensing

Storage humidity:10%～95%,non-condensing
Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration: IEC 60068-2-6

Freefall: IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic: EN 50121-4
Safety

CE Mark , commercial

CE/LVD EN60950
Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension:158 x 114.8 x 60mm

Mounting method: Din-rail mounting
Warranty 3 years


Quality Assurance of Fiber Switch

  1. We absolutely never use old and refurbished materials.
  2. Always a pre-production sample before mass production;
  3. Have professional engineers check the quality.
  4. All products have passed CE, FCC, ROHS, and other certifications
  5. Always final Inspection before shipment;

Packing List of Fiber Switch

User Manual *1 pc

8 Port Industrial Optical Switch *1 pc

Warranty Card *1 pc

Application of Fiber Switch


8 Port 1000mbps Industrial Network Switch With 4 Fiber Ports IEEE 802.3 Compliant

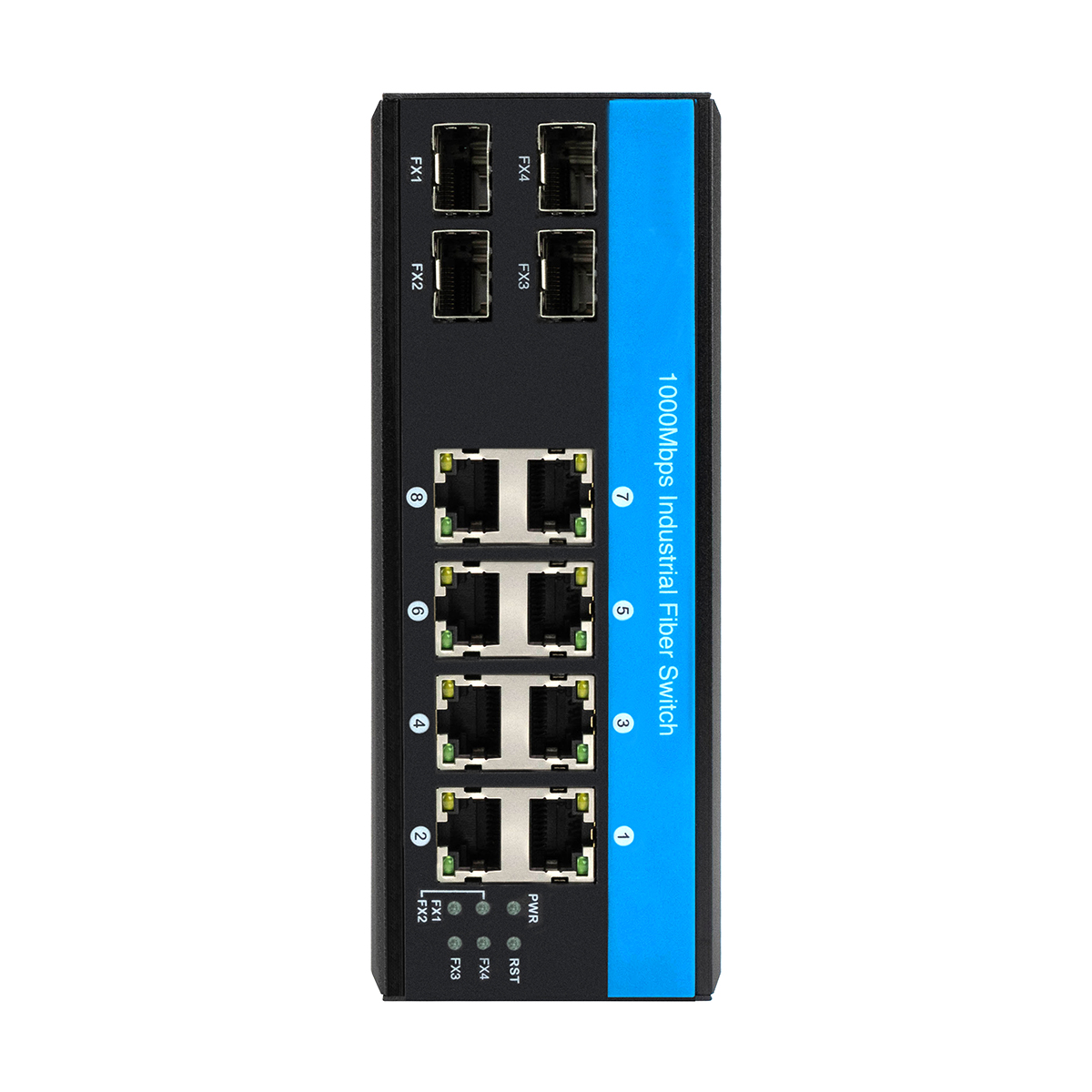

Photo of Fiber Switch

8 Port 1000mbps Industrial Network Switch With 4 Fiber Ports IEEE 802.3 Compliant
