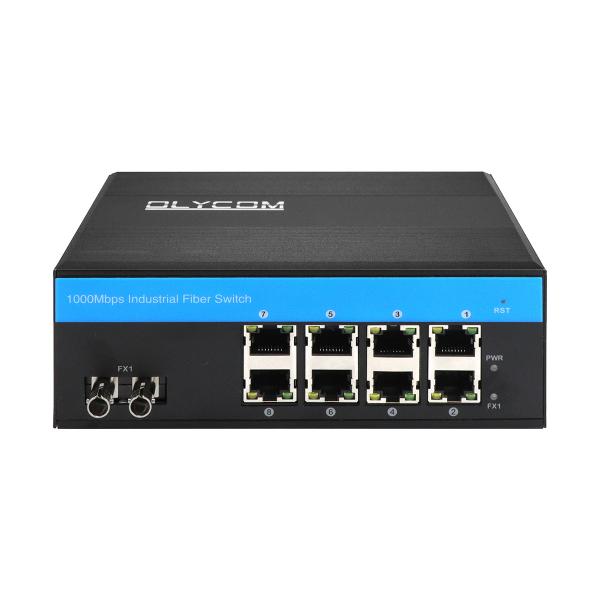

8 Port Industrial Gigabit Network Switch Unmanaged ST Fiber Singlemode 30Km DC24V

Name: 8 Port Industrial Gigabit Network Switch Unmanaged ST Fiber Singlemode 30Km DC24V
Brand: Olycom
Price: 1 USD

Wholesale 8 Port Industrial Gigabit Network Switch Unmanaged ST Fiber Singlemode 30Km DC24V from china suppliers

Brand Name : Olycom

Model Number : IM-FS180GE-ST

Certification : CE RoHS FCC

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : negotiable

Payment Terms : T/T, PayPal

Supply Ability : 3000pcs/month

Delivery Time : 4~7 working days

Packaging Details : 1pc in a carton, 0.9kg/pc

Product name : Gigabit Ethernet Switch 8 port

Dimension : 158*115*60mm

Weight : 0.75kg

Warranty : 3 years

Rate : 10/100/1000M

Distance : ST connector, 30Km

Contact Now

Olycom Industrial Unmanaged Ethernet Switch with ST Connector

Introduction to Industrial Network Switch

IMN-FS180GE series is the 10/100/1000Mbps industrial unmanaged Ethernet switch with the below features

support wide voltage dual power input, DC12V~DC52V
operating temperature -40 ℃ to + 75 ℃
meet IP40 protection degree and EMC industrial grade requirements
pass through dangerous environmental certification and comply with FCC and CE standards

Key Features of Rugged Ethernet Switch

6KV Ethernet surge protection
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
ST fiber uplink, duplex 30KM distance
8 x 10/100/1000Mbps auto-sensing RJ45 downlink ports

Specification of Industrial unmanaged switch

Product Name	10/100/1000Mbps Industrial Fiber Switch(1Fiber+8TP)
Model No.	IMN-FS180GE-ST
Port	1pc singlemode ST fiber uplink, 30km 8pcs 10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features	Transmission mode: storage and forward System bandwidth: 18Gbps (non-traffic jam)
Network media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs	Power, network
Power supply	Input voltage: DC 12-52V No-load power: 5W Reverse connection: support
Environment	Working temperature: -40°～75°C Storage temperature: -40°～ 85°C Working humidity: 10%～90%,non-condensing Storage humidity: 10%～95%,non-condensing
Industry Standards	EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A EMS: EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration: IEC 60068-2-6 Freefall: IEC 60068-2-32 Shock: IEC 60068-2-27 Rail Traffic: EN 50121-4
Safety	CE Mark, commercial E-mark(please contact us if certification copy is required) CE/LVD EN60950
Mechanical information	Shell: Corrugated metal shell Safety class: IP40 Dimension: 158 x 115x 60mm Mounting method: Din-rail mounting
Warranty	Replacement within 1 year; 3 years repairing

Dimension of 9 port Ethernet fiber switch

8 Port Industrial Gigabit Network Switch Unmanaged ST Fiber Singlemode 30Km DC24V

Company Profile

We manufacture and market fiber optic connectivity devices.

We provide solutions and services of industrial fiber switch, fiber to copper media conversion, Ethernet networking, and CCTV video surveillance.

We are a 20-year-old manufacturer with production lines and basically provide
2 4 6 8 10 12 16 port din-rail gigabit industrial L2 L3 managed switch
Normal POE fiber optic Ethernet media converter
14 slots 16 slots media converter chassis rack
AHD TVI CVI Analog video to fiber converter
Customized data video Ethernet phone audio contact closure over fiber optic extender converter SFP copper fiber transceiver
Serial to fiber optic converter
