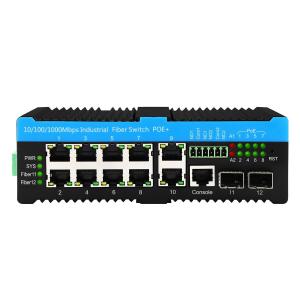

Managed Industrial Network Switch 2*2.5G SFP+8*RJ45 Ports
10/100/1000M POE 90W outdoor switch
Key Features of 2.5G managed Industrial Network Switch
▪8x 10/100/1000Base-T RJ-45 and 2x 100/1000/2500Base-FX SFP Fiber
▪2 Copper/MSA Fiber Combo ports ( Port 9, 10, and FX1, FX2)
▪Supports negative RS-232 console port
▪Cable diagnostic, Measuring cable normal or broken point distance
▪Redundant input power 48VDC (48~57VDC) or 100-240VAC
Application
Management Interface
▪STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
▪Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize the power consumption
▪DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82
▪QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
▪IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR
▪Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
▪IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
▪Security : Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
▪Software upgrade via TFTP and HTTP, redundant firmware to avoid in case of upgrade failure
▪Supports IEEE1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
▪RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, IEEE802.1ab LLDP
▪Supports IPv6 Telnet server /ICMP v6
▪CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management
Packing List:
| PACKING LIST | CONTENT | QTY | UNIT |
| 2.5G managed industrial PoE switch | 1 | SET |
| User Manual | 1 | PC |
| Warranty Card | 1 | PC |
| Removable Terminal Block | 1 | PC |
| Note: Industrial Managed POE Switch does not include the power supply and SFP module. |
FAQ:
1.Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html
2.What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.
3. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.
4. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.
5. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
